STORMASTER ESE AIR TERMINAL
The Stormaster Early Streamer Emission air terminal uses the naturally occurring electrical field to complete the timely release of an upward streamer. This process provides for a safe and efficient method of controlling dangerous lightning energy at a preferred point. As a thunder storm gathers overhead the ambient electrical field surrounding the Stormaster ESE begins to rise in voltage. Upon the approach of a downleader towards the protected area there is a rapid increase in the electric field which initiates the triggering of an upward streamer from the Stormaster ESE terminal. The concept of earlier allows for a larger or enhanced area of protection to be provided by the Stormaster ESE in comparison to a conventional rod. With the release of the upward streamer from the finial tip earlier than other competing structural points, the Stormaster ESE terminal becomes a preferred point for the capture of the lightning discharge within the protected area.

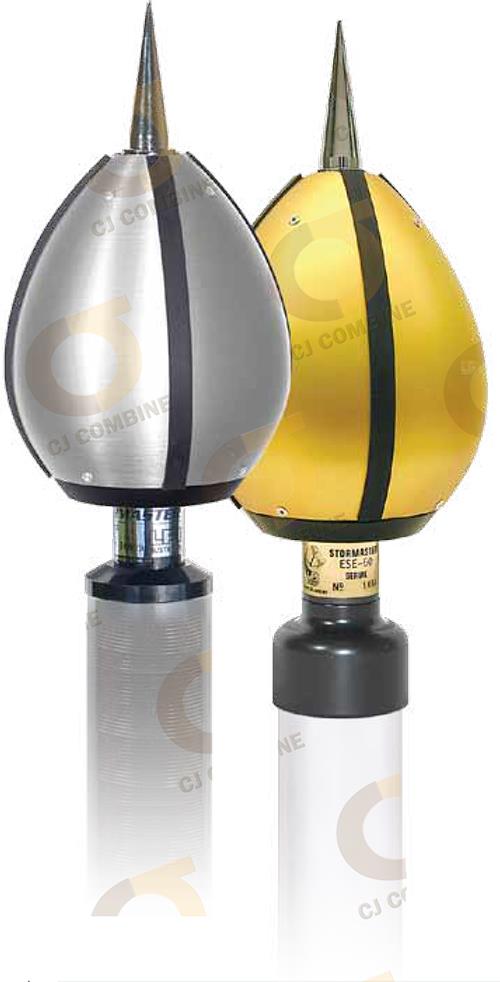

The Stormaster ESE Range
LPI offer Early Streamer Emission (ESE) air terminals in both Anodized Aluminum and Stainless Steel.
Ordering Code:
STORMASTER-ESE-XX-YY-ZZ
XX: ΔT, available in 15, 30, 50 and 60
YY: Blank for Gold (anodized aluminium) Model,
SS for Stainless Steel Model
ZZ: Blank for standard model, GI for 2 inch BSP GI pipe adaptor

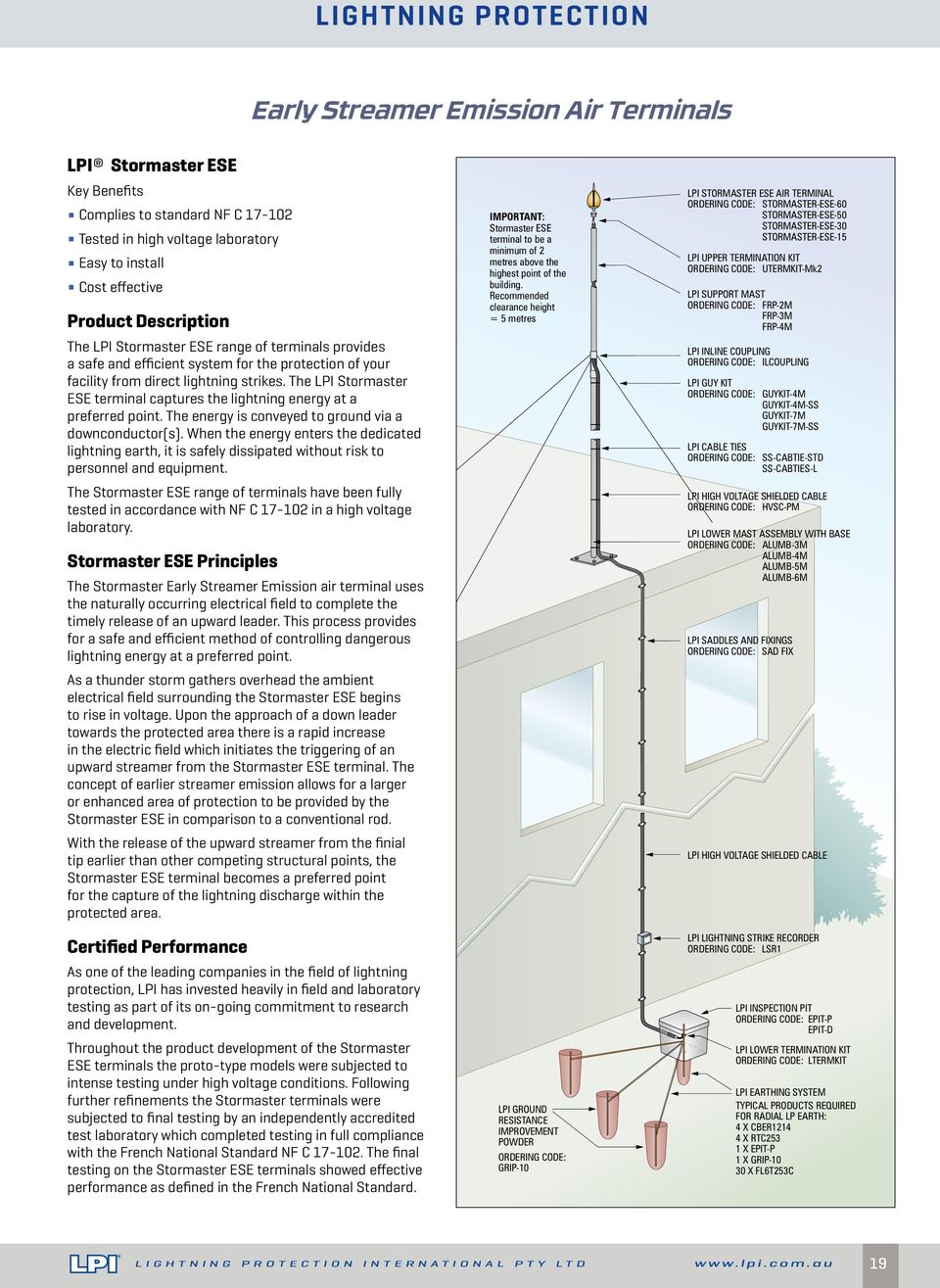

Click Here To Download Pdf Brochure Stormaster
LPI’s Stormaster ESE
The Stormaster ESE range of terminals provides a safe and efficient system for the protection of your facility from direct lightning strikes. The LPI Stormaster ESE terminal captures the lightning energy at a preferred point.
The non-radioactive terminal conveys the energy to ground via down-conductor(s). When the energy enters the dedicated lightning earth, it is safely dissipated without risk to personnel and equipment.

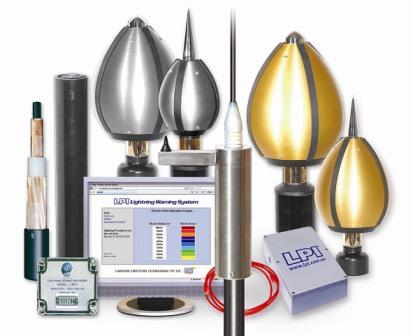

LPI Product Offering
Lightning Protection International Pty Ltd offers a comprehensive range of products and services as part of its complete solution to your lightning problems. These products cover Direct strike protection, surge and transient protection and earthing solutions.
- Stormaster range of ESE Air terminals, compliant to NF C 17-102
- Guardian Lightning Protection System 5, tested to IEC 60-1:1989
- Conventional lightning protection
- Surge and Transient protection products for power lines
- Surge and Transient protection products for data, communications and signal lines
- “EXOWELD” range of exothermic welding products for the connection of earthing conductors
- Earth rods and accessories
- Earth Enhancing Compounds for the lowering of soil resistivity
How does the LPI Stormaster ESE Terminal work?
The Stormaster Early Streamer Emission air terminal uses the naturally occurring electrical field to complete the timely release of an upward streamer. This process provides for a safe and efficient method of controlling dangerous lightning energy at a preferred point.
As a thunder storm gathers overhead the ambient electrical field surrounding the Stormaster ESE begins to rise in voltage. Upon the approach of a downleader towards the protected area there is a rapid increase in the electric field which initiates the triggering of an upward streamer from the Stormaster ESE terminal. The concept of earlier allows for a larger or enhanced area of protection to be provided by the Stormaster ESE in comparison to a conventional rod.
With the release of the upward streamer from the finial tip earlier than other competing structural points, the Stormaster ESE terminal becomes a preferred point for the capture of the lightning discharge within the protected area.
